Static Analysis of Turla’s Uroboros: Revealing Core Tactics and Technical Mindset



Though over a decade old, Uroboros reflects a level of technical mastery and creative mindset that still challenges analysts today





“To understand the immeasurable, the mind must be extraordinarily quiet, still.”
— Jiddu Krishnamurti



By Seeker(李标明) China

Independent Malware Analyst & Researcher

Download the Full Report (PDF)

---

Prologue: The Temple and the Kernel

Recently, I still climbed a mountain and visited the temple again and again. Here, I keep moving to find more. In fact, to be honest, I’m still facing a lot of unknowns to learn, and that means continuing even when I’m confused or overwhelmed. And I like to do internal observation as my daily habit.



Most call it snake and Uroburos. I notice that Kaspersky used Uroburos or Uroboros in 2014 or 2015, but I like the name "Uroboros." Yeah, they are the same thing.



In this report, the first important thing is to do a simple static analysis and grasp their mindset.

---

Sample choice: Uroboros

Yeah, it’s still the nation-state group APT called Turla.



Sample md5: ed785bbd156b61553aaf78b6f71fb37b

---

First impression: sophisticated and mastery

The first impression of Uroboros is very sophisticated; it’s not just binary, it is the design and thinking. They create a new path but become a part of the operating system, which is subtle and hides intent inside the design. The very long and deep execution chain and injection of design from user mode to kernel mode is top elite level, which implies Turla's understanding of the kernel is amazing. They understand, they create, and they hide.

---

Static analysis



Kernel escalation and monitor the new process created

The malware Uroboros from the application in user mode to kernel mode is a very long execution chain design and complex. From the DriverEntry to the function sub_16B78, alongside the primary path forward, and finally it uses PsSetCreateProcessNotifyRoutine to register NotifyRoutine for kernel callbacks; from there, the key point is to inject the whole design and hijack the new process created.

Fig.1 PsSetCreateProcessNotifyRoutine and kernel callback





Multi-stage injection of trusted processes

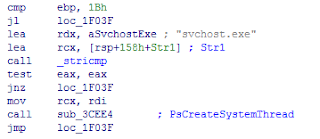

The malware Uroboros uses ZwQuerySystemInformation to enumerate processes, find services such as service.exe, svchost.exe, and browsers (iexplore/firefox/chrome), and determine which is the best place to inject or hide by privilege. The persistence is multi-staged and injected into trusted processes. To intercept, the browser can get the private information to further expand their attack surface.

Fig.2 Inject into svchost.exe by privilege





Network persistence and evade detection

The malware Uroboros abused legitimate Windows drivers to hijack system functionality. It modifies kernel function pointers (e.g., in ndis.sys or fwpkclnt.sys) to redirect execution to the same malicious function, sub_4AFBC. ndis.sys handles network traffic, and fwpkclnt.sys is part of the Windows Firewall; pathing them is ideal for stealthy network filtering and intercepting packets. It is a kernel-level network interception technique to maintain persistence and evade detection.

Fig.3 patching the driver fwpkclnt.sys





Customized http protocol design thinking

in the function sub_3F23C, From the HTTP request parsing with a specific “type” (==6) and the code comparison with the strings “&a” and the XOR description routine, it is a typical XOR loop, using a static decryption table (unk_65D70). The input (e.g., from &a=) is probably encrypted, and this routine decrypts it. In total, Turla typically uses customized HTTP designed to blend in with Internet traffic.

Fig.4 customized HTTP protocol





This static analysis reveals that Turla’s Uroboros rootkit employs kernel-level privilege escalation and monitors process creation to enable multi-stage injection into trusted system processes. It maintains network persistence through stealthy communications and evades detection with a custom-designed HTTP protocol, reflecting a strategic focus on covert, long-term control and adaptability.



It’s related only to some primary but limited characteristics. I did not pursue full tracing of all in this report, to be honest. It’s not a binary but architecture and subversive thinking. It’s a very exciting and challenging journey.



I hold deep respect for Turla — not only for their exceptional mastery of Windows kernel internals but also for the boldness and creativity shown in their techniques. What’s truly remarkable is that this mindset and technical capability were already present over a decade ago. It reminds me to stay humble, keep studying and seeking.



Epilogue: What the Kernel Taught Me

The kernel is a deep ocean and dynamically changing—to keep learning and seeking.

---

“Do or do not, there is no try.”
— Master Yoda

End of Report
