Mirai botnet among different instruction sets: x86, ARM, PPC, and MIPS with static analysis



Summary

Mirai botnet family first discovered in 2016, the botnet will look for devices of IoT with scanner which embedded a dictionary for brute force attack and vulnerabilities exploit, and can do a DDoS attack like TCP flood and UDP flood and so on, later on, the source code distributed in github and different variants came from that time, nowadays, botnet is big challenging and threat to IoT, it is worthy doing research with different instruction sets, this report come here for a new try and let’s do it.





Technical analysis



This botnet is the ELF for Intel 386 (executable).

The hash

MD5: 6950F28382D7F11E18BDF53F3983117B

The load segment displays lots of source files that can help analysts to learn from which source code is being included and infer the main function of malware, likely with the source file “kill.c” to tell the analyst it may use the kill command to stop the process and “socket.c,” which can be used for malware to connect to the network.

Figure1-Source File List

Figure2-Kill Pid



The botnet at the part of initConnection connects to the server and port with plain text “31.172.87.248:12345,” and then goes to sleep and receives the command from the server and starts the attack DDoS module with processCmd, which supports TCP flood and UDP flood and so on, and stops the process.

Figure3- InitConnection To Server

Figure4- ProcessCmd With DDoS

Figure5-The Type Of ProcessCmd And Stop Process



TCP flood supports SYN, RST, FIN, ACK and PUSH.

Figure6-TCP Flood



The getPortz function checks for the existence of Python, Python3, and Perl binaries. If any exist, it returns."22" If none exist but /usr/sbin/telnetd is missing, it returns. "Unknown Port", Otherwise, it defaults to "22".

Figure7-GetPortz

The version of the botnet seems to be focused on starting an attack with DDoS, not to do cracking with a dictionary for telnet, and not to use any vulnerability to exploit.





This botnet is the ELF for ARM (Executable) in 32-bit.

The hash

MD5: 8ECAFDA00F1F5E5F8E94A10BB94D79B3



The load segment does not display any source files list and the function list without any useful information for analysts; it will take more time to dive deeply into the botnet when doing static analysis.

Figure8-Function Name About The ELF For ARM



The botnet embedded CVE-2017-17215 vulnerability exploited Huawei products and used command injection to implant malware, likely with downloading botnets for expanding the attack surface.

Figure9- CVE-2017-17215



The botnet embedded a dictionary to do a brute force attack.

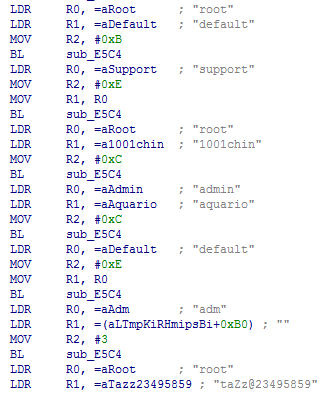

Figure10-A Dictionary For Brute Force



The botnet kills other processes without plain text list, linux_eabi_syscallis an assembly-level mechanism for invoking system calls on ARM architectures, and the number is 37.

Figure11-Kill Other Process



The botnet changes the process to hide the real process for the anti-killing virus, which was running on the victim host.

Figure12-Change The Real Process

This version of the botnet with ARM architectures seems a bigger challenger than x86 architectures.

This botnet is the ELF for PowerPC (Executable) in 32-bit.

The hash

MD5: C6F057C974B24F6ABDAC5B76B10040B9



The load segment only displays “ppc-asm.h” include list and the function list without any useful information for analysts;

Figure13-Load Segment



Using the crontab to execute a task with “bot.conf” file and make the botnet running as service.

Figure14- Crontab And Service



The botnet kills other processes without plain text list, linux_syscall an assembly-level mechanism for invoking system calls on ARM architectures, and the number is 37.

Figure15-Kill Other Process



The botnet changes the process to hide the real process for the anti-killing virus, which was running on the victim host.

Figure16- Change The Real Process



This version of botnet without brute force attack and vulnerability exploited.

This botnet is the ELF for MIPS (Executable) in 32-bit.

The hash

MD5: CE6B524DB5612552294B5661EFFED7BD



The load segment does not display any source files list and the function list without any useful information for analysts; it will take more time to dive deeply into the botnet when doing static analysis.

Figure17-Function Name About The ELF For MIPS



The entry of variant of MIRAI is still very clearly, the function sub_40BA5C is main routing.

Figure18-The Entry



A dictionary is embedded for brute force in MIPS architectures like the following.

Figure19- Brute Force



In MIPS, the number of system calls begins at 4000, and “__asm { syscall }” is an inline assembly instruction that invokes a system call, the number 4170 is short for socket connection.

Figure20-Snippet For Connect



Username and password had been obfuscated with XOR, and the key was 0x37.

Figure21-Xor Algorithm



The IP address “41.216.189.127” is a fake IP, which will be changed by the sub_413780 function in order to hide the real server.

Figure22- sub_413780 Change Fade IP Address



The new variant uses double obfuscation to encode strings; it makes analysis more challenging. Maybe it will appear with multiple obfuscation techniques for anti-analysis.

Figure23-Double obfuscation



Obviously, the variant of Mirai botnet in MIPS architectures to do static analysis is a big challenge because of its policy of obfuscation.







ICOs

6950F28382D7F11E18BDF53F3983117B

8ECAFDA00F1F5E5F8E94A10BB94D79B3

C6F057C974B24F6ABDAC5B76B10040B9

CE6B524DB5612552294B5661EFFED7BD



Conclusion

From the above static analysis, we can get very limited knowledge about the Mirai botnet with different architectures, especially since they are a big challenge by obfuscation technique, although we can find the main routing or basic structure of botnet to go forward, but it still takes us more time and energy for the whole process of analysis.

 End.
